预成型焊片
SOLDER PREFORMS
预成型焊片
我们为用户展现给用做微主装的优势互补预塑压焊片，化合物产品包罗Au80Sn20、Sn42Bi58、In97Ag3等近100好几种硬质合金知料。
咋们可供应者各大标准规程型和非标准规程型的贵不锈钢各种合金材料钎焊的相关资料，还可根据用户名的明确提出，制定很大标准、很大尺码的尤为昨用的各种合金材料钎焊的相关资料。

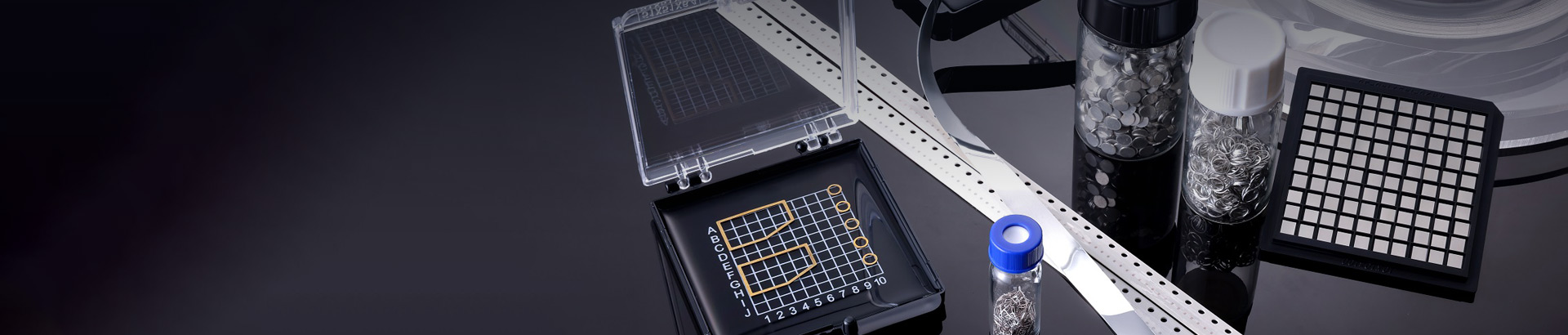

结果外包装
为便利运输与存储，咱们为差别的预成型焊片供给定制化包装，有VR包装、华夫盒、载带、卷轴、散料等各类规格的包装体例。
| 产物称号 | 固相线温度 | 液相线温度 | 共晶合金温度 | 密度 | 电阻率 | 热导率 | 热收缩系数 | 抗拉强度 |
| PRODUCT |
TS ℃ |
TL ℃ |
EUTECTIC TEMPERATURE ℃ |
DENSITY g/cm3 |
RESISITIVITY µΩ.m |
THERMAL CONDUCTIVITY W/m.K |
CTE 10-6/℃ |
TENSILE STRENGTH Mpa |
| In51Bi32.5Sn16.5 | / | / | 60 | 7.88 | 0.522 | / | 22 | 33.44 |
| In66.3Bi33.7 | / | / | 73 | 7.99 | / | / | / | / |
| Bi50Pb28Sn22 | / | / | 100 | / | / | / | / | / |
| In52Sn48 | 120 | 122 | / | 7.3 | 0.147 | 34 | 20 | 12 |
| Sn50In50 | 118 | 125 | 60 | 7.3 | 0.147 | 34 | 20 | 11.86 |
| Bi58Sn42 | / | / | 138 | 8.56 | 0.383 | 19 | 15 | 55.16 |
| Bi57Sn42Ag1 | 138 | 140 | / | 8.57 | / | / | / | / |
| Sn43Pb43Bi14 | 144 | 163 | / | / | / | / | / | / |
| In97Ag3 | / | / | 143 | 7.38 | 0.075 | 73 | 22 | 5.5 |
| In80Pb15Ag5 | 149 | 154 | / | 7.85 | / | / | / | / |
| Au100 | / | / | 157* | 7.31 | 0.072 | 86 | 29 | 1.88 |
| In60Pb40 | 174 | 185 | / | 8.52 | 0.246 | 29 | 27 | 28.61 |
| Sn77.2In20Ag2.8 | 175 | 187 | / | 7.25 | 0.176 | 54 | 28 | 46.88 |
| Sn62Pb36Ag2 | / | 179 | / | 8.42 | 0.145 | 42 | 27 | 44 |
| Sn63Pb37 | / | 183 | / | 8.4 | 0.146 | 51 | 25 | 52 |
| Pb75Sn25 | 183 | 268 | / | 9.96 | 0.194 | / | / | 23.62 |
| Sn60Pb40 | 183 | 195 | / | / | / | / | / | / |
| Sn94.5Ag3.5 Cu0.5 Bi1.5 | 215 | 224 | / | / | / | / | / | / |
| Sn73Ag20Sb7 | 233 | 245 | / | / | / | / | / | / |
| In50Pb50 | 184 | 210 | / | 8.86 | 0.287 | 22 | 27 | 32.2 |
| Pb60In40 | 197 | 231 | / | 9.3 | 0.331 | 19 | 26 | 34.48 |
| Sn98.5Ag1.0Cu0.5 | 217 | 227 | / | 7.32 | 0.133 | 60 | / | 40 |
| SAC305 (Sn96.5Ag3.0Cu0.5) | 217 | 218 | / | 7.37 | 0.132 | 58 | 21 | 50 |
| Sn95.5Ag3.8Cu0.7 | 217 | 220 | / | 7.4 | 0.132 | 57 | 22 | 48 |
| SAC40 （Sn95.5Ag4.0Cu0.5) | 217 | 220 | / | 7.4 | 0.132 | 62 | / | 51.5 |
| Sn96Ag3.5Cu0.5 | 217 | 218 | / | / | / | / | / | / |
| Sn90Au10 | / | 217 | / | 7.77 | / | / | / | / |
| Sn96.5Ag3.5 | / | 221 | / | 7.37 | 0.108 | 33 | 30 | 39 |
| Sn95Ag5 | 221 | 240 | / | 7.4 | 0.137 | / | 23 | 55.2 |
| Sn95.5Ag3.9Cu0.6 | 217 | 220 | / | / | / | / | / | / |
| Sn99Ag0.3Cu0.7 | 217 | 227 | / | / | / | / | / | / |
| Sn65Ag25Sb10 | / | / | 233 | / | / | / | / | / |
| Sn100 | / | / | 232* | 7.29 | 0.111 | 73 | 24 | 13.1 |
| Sn95Sb5 | 235 | 240 | / | 7.25 | 0.145 | 28 | 31 | 40.7 |
| Sn90Sb10 | 240 | 250 | / | 7.22 | / | 42 | 27 | 44 |
| Pb75In25 | 240 | 260 | / | 9.97 | 0.375 | 18 | 26 | 37.58 |
| Pb88Sn10Ag2 | 268 | 290 | / | 10.75 | 0.203 | 27 | 29 | 22.48 |
| Au80Sn20 | / | 280 | / | 14.52 | 0.224 | 57 | 16 | 276 |
| Au75Sn25 | 278 | 332 | / | / | / | / | / | / |
| Au78Sn22 | 278 | 301 | / | 14.18 | / | / | / | / |
| Au79Sn21 | 278 | 289 | / | 14.34 | / | / | / | / |
| Pb90Sn10 | 275 | 302 | / | 10.74 | / | / | / | / |
| Pb92.5Sn5Ag2.5 | 287 | 296 | / | 11.02 | 0.2 | 26 | 24 | 29.03 |
| Pb92.5In5Ag2.5 | 300 | 310 | / | 11.02 | 0.313 | 25 | 25 | 31.44 |
| Pb93Sn7 | 285 | 310 | / | 10.94 | / | / | / | / |
| Au88Ge12 | / | / | 356 | 14.67 | 0.151 | 44 | 13.4 | 185 |
| Ag72Cu28 | / | / | 780 | 10 | / | 352 | 17.8 | 250-360 |
| Au80Cu20 | / | / | 910 | 15.67 | / | / | / | / |
| Au50Cu50 | 955 | 970 | / | 12.22 | / | / | / | / |
| Ag100 | / | / | 961 | 10.49 | 0.0163 | 429 | / | 180 |
| Au100 | / | / | 1064* | 19.3 | 0.0221 | 318 | 14 | 138 |
| Cu100 | / | / | 1083* | 8.96 | 0.0172 | 401 | / | 246 |
